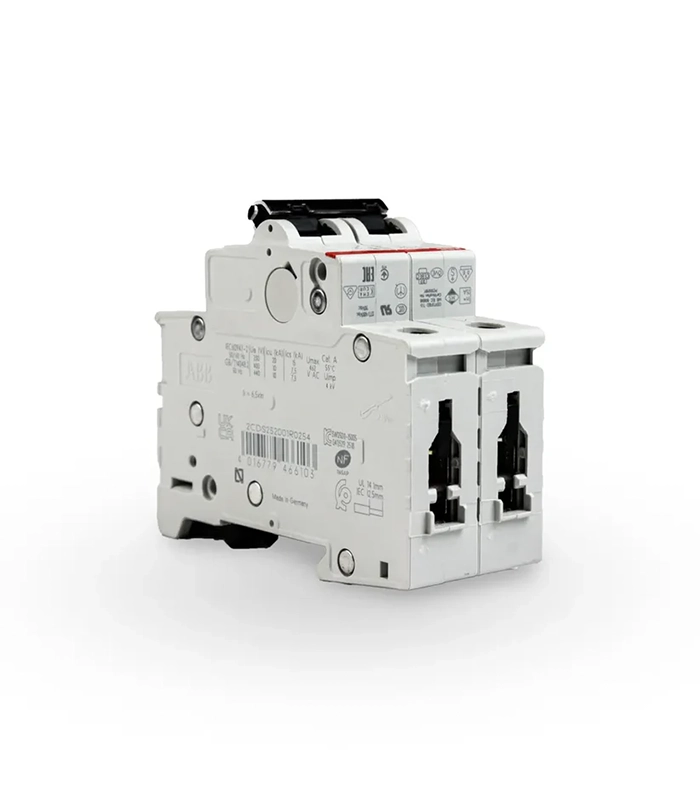

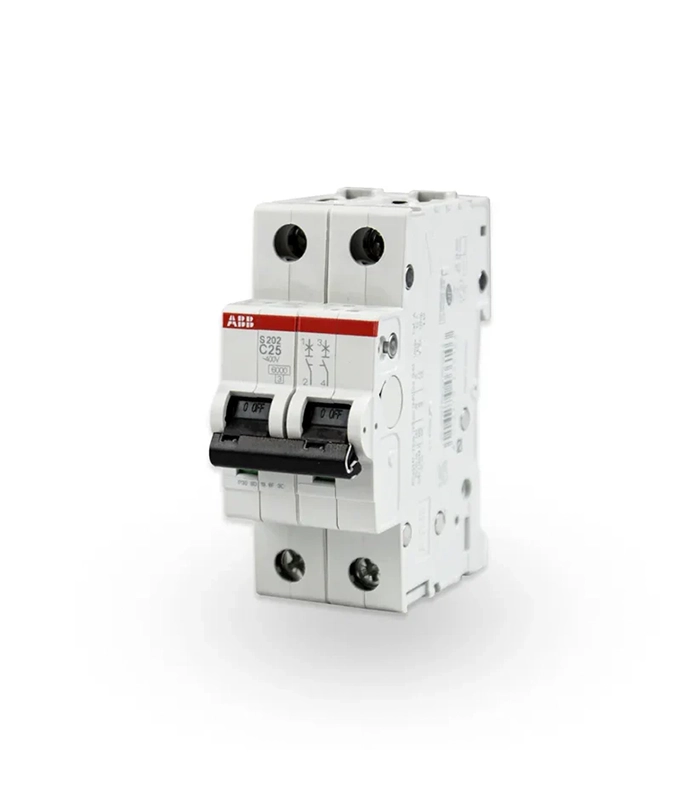

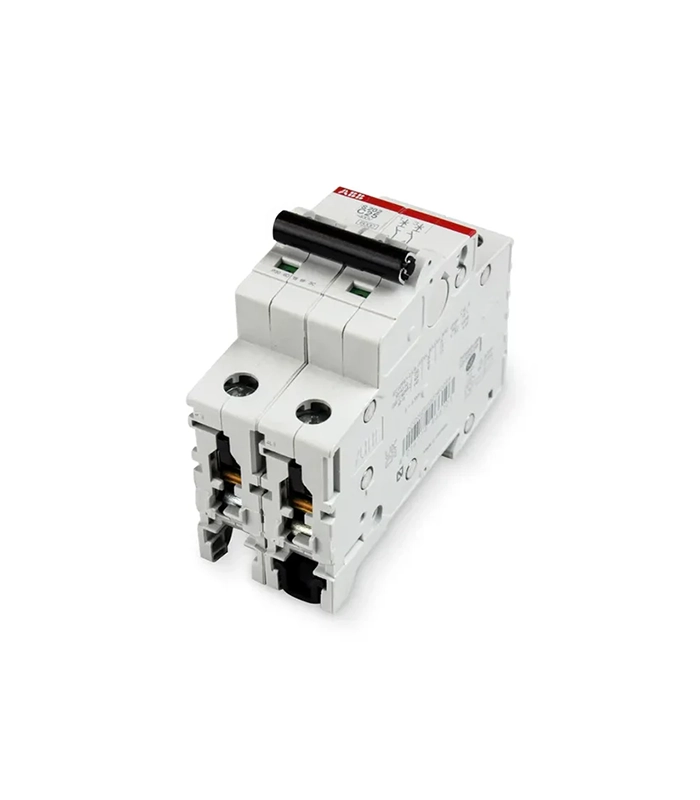

ABB S 202 10 KA 2 Pole Miniature Circuit Breaker

ABB S 202 2P MCB Breaker price in Pakistan is Rs 1,500/-.

Compact Home S 200 miniature circuit breakers are currently limited. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.

They are available in different characteristics (B, C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC), and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.

Features

• Standards: IEC/EN 60898-1 IEC/EN 60947-2 UL 1077

• Tripping Characteristic: C

• Rated Operational Voltage: acc. to IEC 60898-1 400 V AC | acc. to IEC 60947-2 440 V AC

• Operational Voltage: Maximum (Incl. Tolerance) 125 V DC | Maximum (Incl. Tolerance) 440 V AC| Minimum 12 V AC | Minimum 12 V DC

• Input Voltage Type: AC

• Rated Current (In):  6A~10A | 16A~40A | 50A~63A

• Power Loss: 4.2 W at Rated Operating Conditions per Pole 2.1 W

• Screw Terminal Type: Cage Terminal

Environmental

• Ambient Air Temperature: Operation -25 … +55 °C | Storage -40 … +70 °C

• Degree of Protection: IP20 | Enclosure with Cover IP40

• Environmental Conditions: 28 cycles with 55 °C / 90-96 % | and 25 °C / 95-100 %
