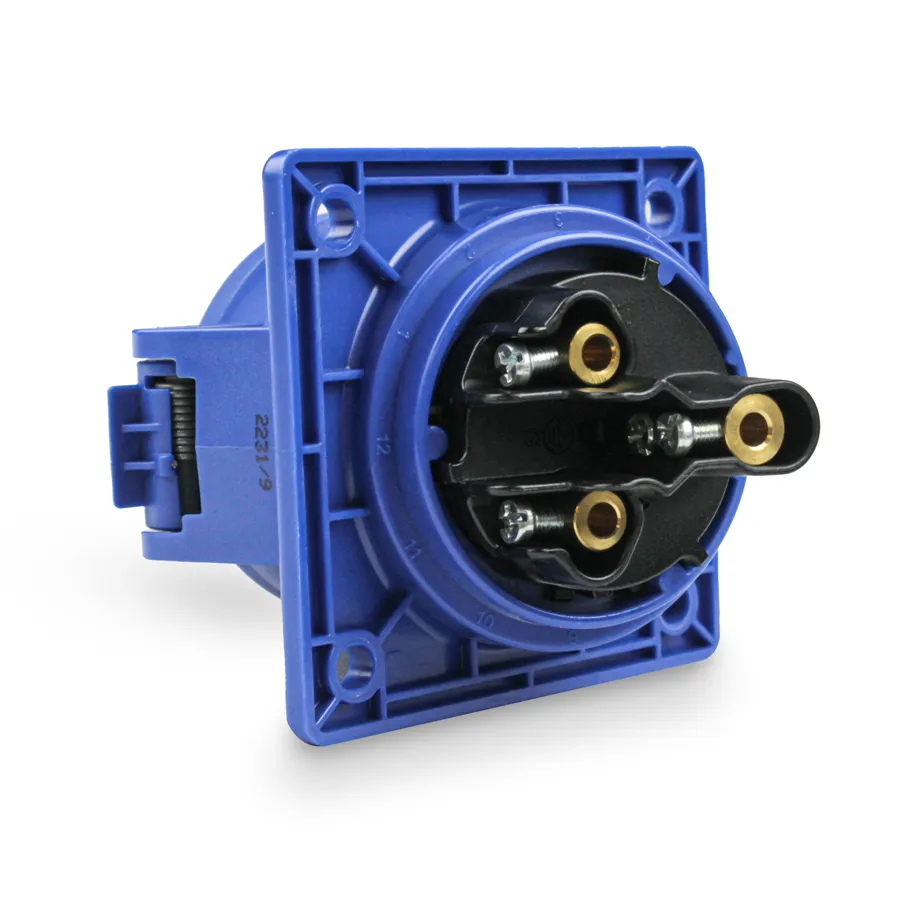

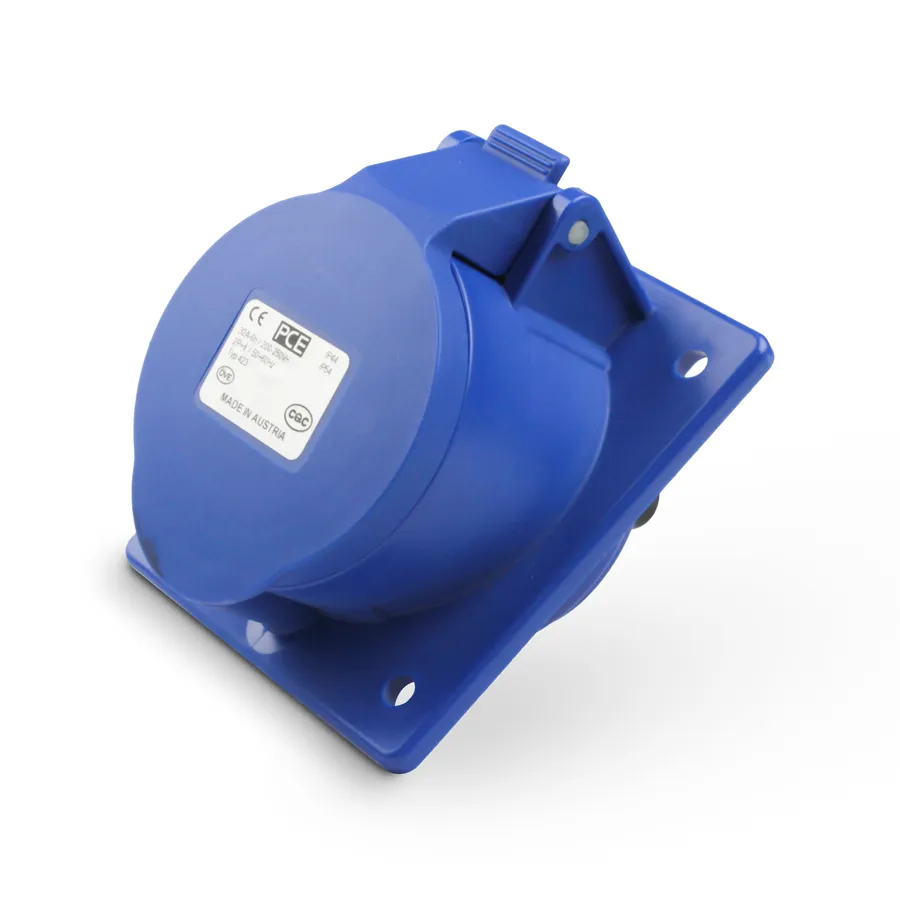

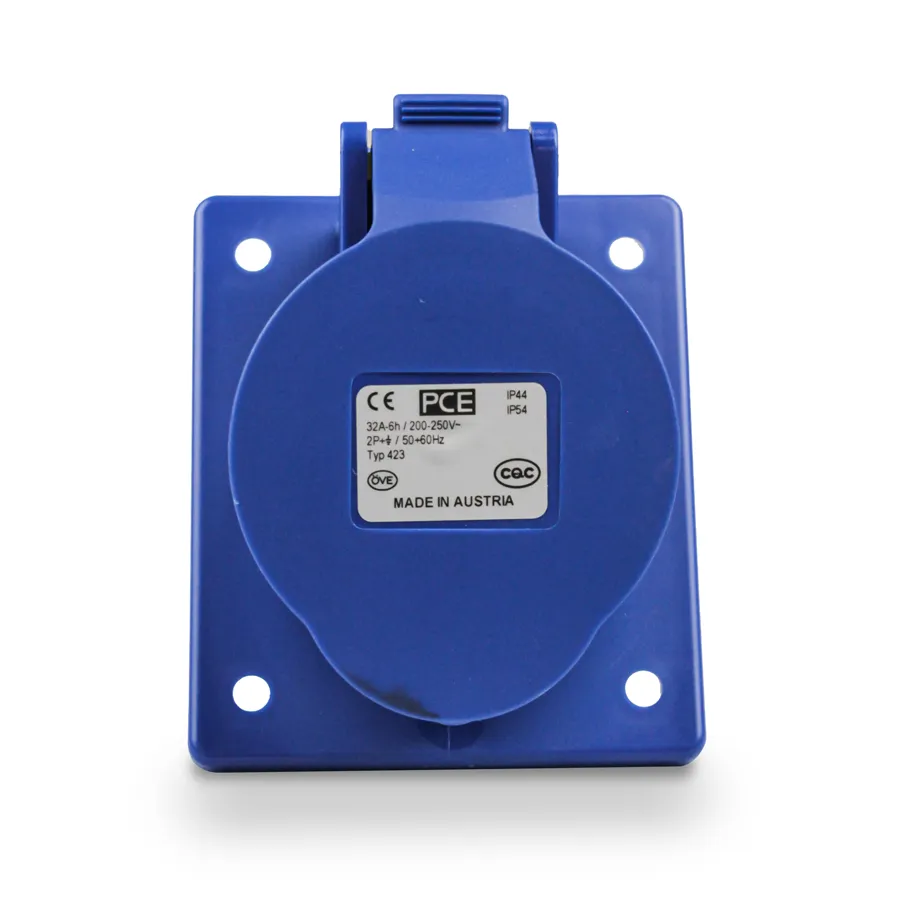

The PCE 16 Amp 3–5 Pin Flanged Socket IP44 is a reliable industrial panel-mounted socket designed for safe and efficient power connections in commercial and industrial environments. It is commonly installed on distribution boards, control panels, generator panels, and machinery enclosures.
Industrial panel / flanged mounting design
Rated 16 Amp current capacity
Available in 3-pin, 4-pin, and 5-pin configurations
IP44 splash-proof protection
Durable impact-resistant thermoplastic housing
Brass contact pins for reliable conductivity
Compatible with IEC 60309 industrial plugs
Easy installation on control panels and distribution boards
| Specification | Details |
|---|---|
| Rated Current | 16 Amp |
| Rated Voltage | 200 – 415 V AC |
| Frequency | 50 / 60 Hz |
| Number of Pins | 3 Pin / 4 Pin / 5 Pin |
| Pole Configuration | 2P+E / 3P+E / 3P+N+E |
| Protection Rating | IP44 (Splash Proof) |
| Mounting Type | Flanged / Panel Mounted |
| Housing Material | High-quality PA6 Thermoplastic |
| Contact Material | Brass (CuZn) |
| Connection Type | Screw Terminal |
| Flange Size | Approx. 60–75 mm |
| Operating Temperature | −25°C to +40°C |
| Temperature Resistance | Up to 80°C |
| Standard Compliance | IEC 60309-1 / IEC 60309-2 |
Electrical distribution panels
Industrial machinery
Generator connection panels
Construction sites
Workshops and factories
Commercial electrical installations
Overview
| Poles |
3 Pole ,5 Pole |
|---|
