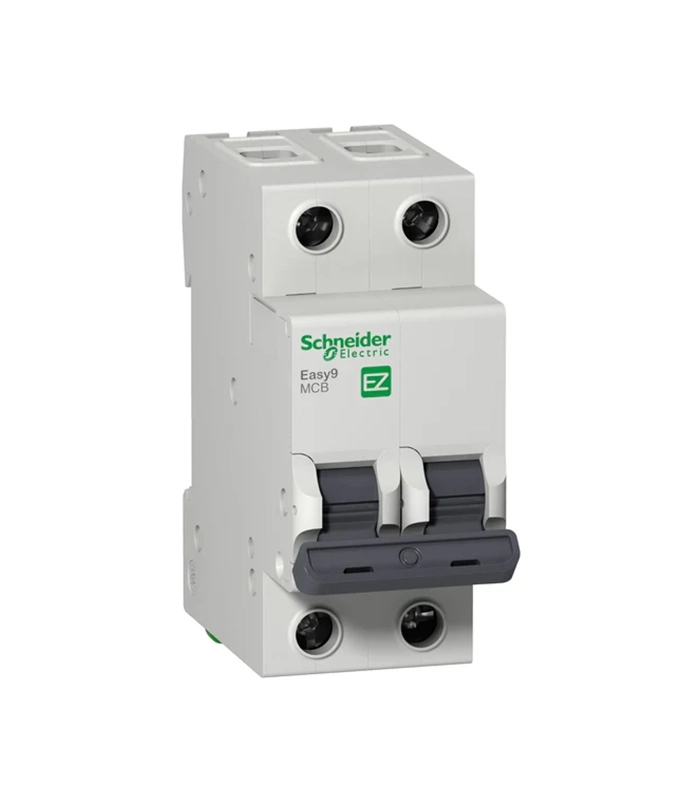

Schneider Easy9 2 Pole Miniature Circuit Breaker 6 kA

Schneider Easy9 2P MCB Breaker price in Pakistan is Rs 3,500/-. The EZ9F43106 is a versatile Miniature Circuit Breaker (MCB) by Schneider Electric. Part of the Easy9 series, it is designed for Double-pole applications with current ratings ranging from 6A to 32A, including options for 40A. The MCB features a C curve, providing effective protection against overloads and short circuits. Compliant with IEC/EN 60898-1 standard, it boasts a high breaking capacity of 3000A, ensuring reliable performance and electrical safety. The product is ideal for a variety of applications where efficient and precise circuit protection is essential.

Product Specifications

Range	easy9
component type	miniature circuit-breaker
device application	distribution
poles description	2 pole
number of protected poles	2
rated current [in]	6 a, 10 a, 16 a, 20 a, 25a, 32 a, 40 a
network type	ac
trip unit technology	thermal-magnetic
curve code	c
breaking capacity	icn 6000 a
rated operational voltage [ue]	220 v ac 50/60 hz / 400 v ac 50/60 hz
magnetic tripping limit	5…10 x in
control type	toggle
mounting mode	clip-on
mounting support	din rail
mechanical durability	10000 cycles
electrical durability	4000 cycles
standards	iec 60898-1
product certifications	ce
ip degree of protection	ip20 conforming to iec 60529
relative humidity	95 % at -25…60 °c
ambient air temperature for operation	–5…60 °c
ambient air temperature for storage	-40…85 °c
