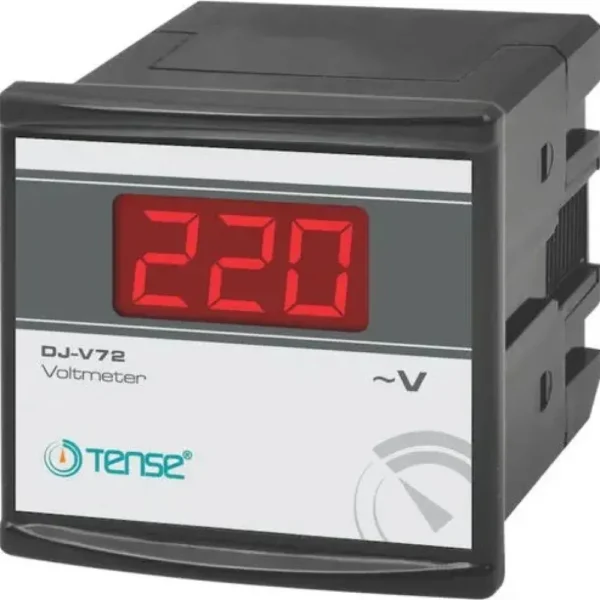

TENSE DIGITAL AC VOLT METERS Model: DJV-72 (0~500V) (72*72) And DJV-96 (0~500V) (96*96)
TENSE DIGITAL AC VOLT METERS Model: DJV-72 (0~500V) (72*72) And DJV-96 (0~500V) (96*96) Original price was: ₨8,800.Current price is: ₨7,480.
-11%
Click to enlarge

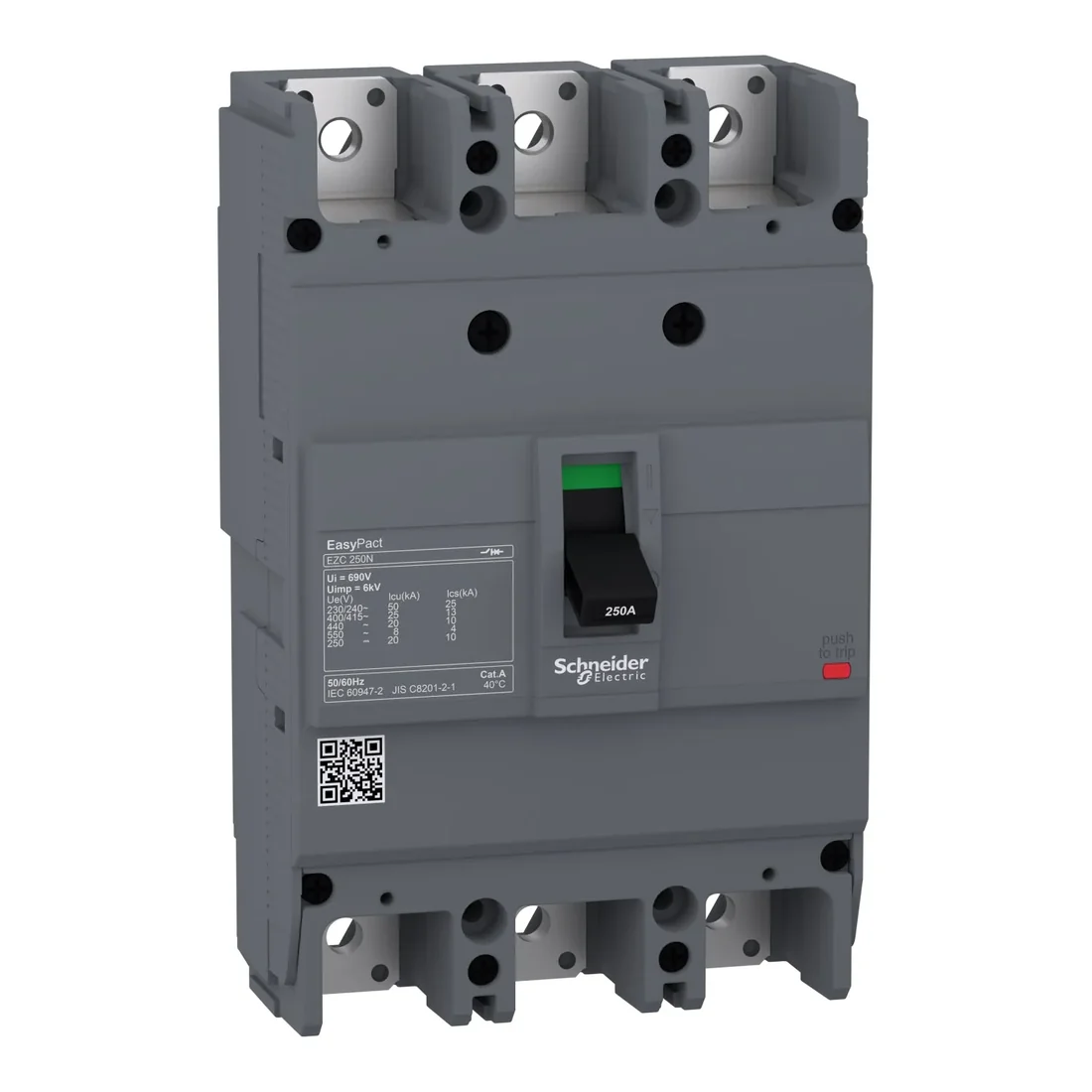

SCHNEIDER EZC250H 3 POLE MOLDED CASE CIRCUIT BREAKER 36KA

SKU: N/A

Price range: ₨40,000 through ₨65,000

Clear
Compare
Add to wishlist
20 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

Product Details
This is a 125A, 150A, 200A,  225A, 250A circuit breaker for EasyPact EZC250H. This product can work below rated operational voltage(Ue) 550VAC at 50/60Hz or 250VDC network. The ultimate breaking capacity(Icu) is shown differently, depending on the condition of the network, Ics=50%Icu if needed to match. This version of the product is designed with 3 pole frame with detection on 3 poles, equipped TMD trip unit for thermal-magnetic protection. It is in compliance with standard IEC60947, CE certification, and some independent labs (KEMA, ASEFA, TUV) or third-party Tilva. This device is certified for operation in a pollution degree III environment as defined by IEC60947 and passes the test of extreme atmospheric conditions. The device can be mounted vertically or horizontally in a metal enclosure, and against safety risk by padlocking. The degree of protection is IP40 for the direct rotary handle and IP54 for the extended rotary handle. This series has slots used for indication or voltage release auxiliaries positioning, depending on where it is inserted in the device behind the front cover of the circuit breaker. The fixed dimension is 105mm(width), 165mm(height), 60mm(Depth).
Key Features
  • Range of product: EasyPact
  • Product or component type: Circuit breaker
  • Circuit breaker name: Easypact EZC250H
  • Device application: Distribution
  • Poles description: 3P
  • Protected poles description: 31
  • Network type: DC/AC
  • Network frequency: 50/60 Hz
  • [In] rated current: 125 A at 40 oc
    Product Specifications
    Range of product
    easypact
    product or component type
    circuit breaker
    circuit breaker name
    easypact ezc250h
    device application
    distribution
    poles description
    3p
    protected poles description
    31
    network type
    dc/ac
    network frequency
    50/60 hz
    [in] rated current
    125 a at 40 oc
    [uij rated insulation voltage
    690 v ac 50/60 hz conforming to iec 60947-2
    [uimp] rated impulse withstand voltage
    6 kv conforming to iec 60947-2
    [uel rated operational voltage
    550 v ac 50/60 hz conforming to iec 60947-2 / 250 v dc conforming to iec 60947-2
    breaking capacity code
    h
    breaking capacity
    36 ka
    suitability for isolation
    yes conforming to iec 60947-2
    utilisation category
    category a
    trip unit name
    tm-d
    trip unit technology
    thermal-magnetic
    trip unit rating
    125 a at 50 oc
    protection type
    short-circuit protection / overload protection
    pollution degree
    3 conforming to iec 60664-1 / 3 conforming to iec 947-1
    control type
    toggle
    mounting mode
    fixed
    mounting support
    backplate
    upside connection
    front
    downside connection
    front
    mechanical durability
    10000 cycles
    standards
    gb/t 14048.2 / en,’iec 60947-2 / jis c8201-2-2 / en,’iec 60947-1
    ip degree of protection
    ip20 conforming to iec 60529
    1k degree of protection
    ik07 conforming to iec 62262
    ambient air temperature for operation
    -25…70 c
    ambient air temperature for storage
    -35..-85 c

Specification

Overview

Ampere Rating

125Amp

,

150A

,

200A

,

250A
