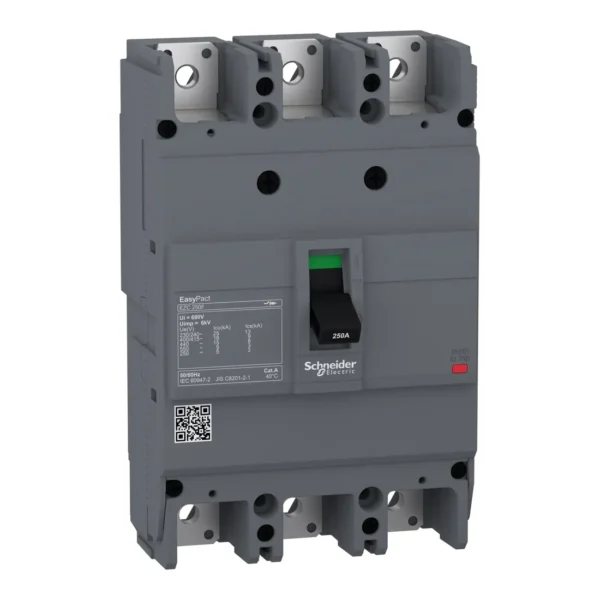

EasyPact EZC250N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at a competitive price The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 125A, 150A, 200A, 225A, 250A. The trip unit provides fixed overload and instantaneous protection. This 3-pole version (105mm x 165mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC250N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
|
Range of product
|
easypact
|
|
product or component type
|
circuit breaker
|
|
device short name
|
easypact ezc250n
|
|
circuit breaker name
|
easypact ezc250n
|
|
device application
|
distribution
|
|
poles description
|
3p
|
|
protected poles description
|
3t
|
|
network type
|
ac/dc
|
|
network frequency
|
50/60 hz
|
|
[in] rated current
|
125 a at 40 oc
|
|
[uij rated insulation voltage
|
690 v ac 50/60 hz conforming to iec 60947-2
|
|
[uimp] rated impulse withstand voltage
|
6 kv conforming to iec 60947-2
|
|
[uel rated operational voltage
|
550 v ac 50/60 hz conforming to iec 60947-2 / 250 v dc conforming to iec 60947-2
|
|
breaking capacity code
|
n
|
|
breaking capacity
|
20 ka icu at 250 v dc 2p conforming to iec 60947-2
|
|
suitability for isolation
|
yes conforming to iec 60947-2
|
|
utilisation category
|
category a
|
|
trip unit name
|
tm-d
|
|
trip unit technology
|
thermal-magnetic
|
|
trip unit rating
|
125 a at 50 oc
|
|
protection type
|
short-circuit protection / overload protection
|
|
pollution degree
|
3 conforming to iec 60664-1 / 3 conforming to iec 947-1
|
|
control type
|
toggle
|
|
mounting mode
|
fixed
|
|
mounting support
|
backplate
|
|
upside connection
|
front
|
|
downside connection
|
front
|
|
mechanical durability
|
10000 cycles
|
Overview
| Ampere Rating |
125A ,150A |
|---|
