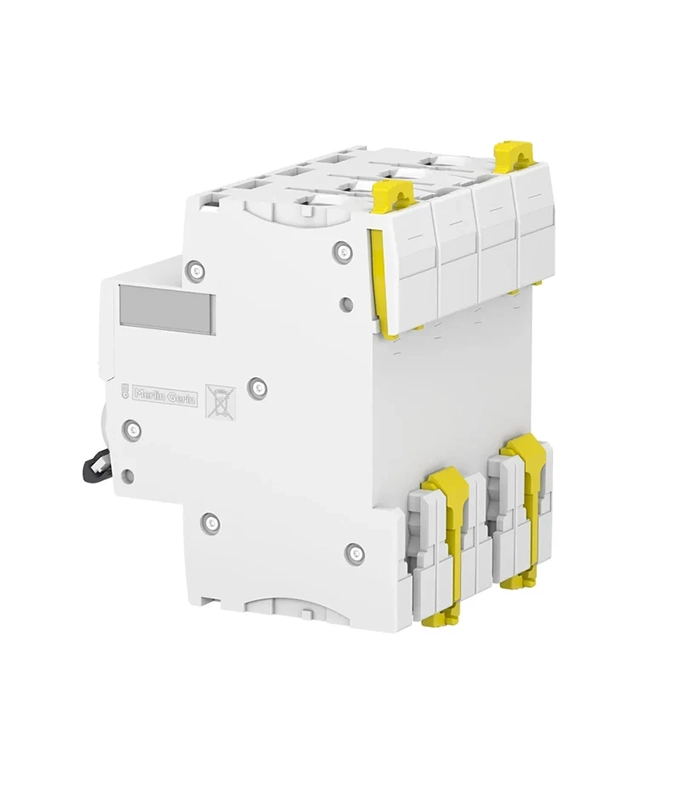

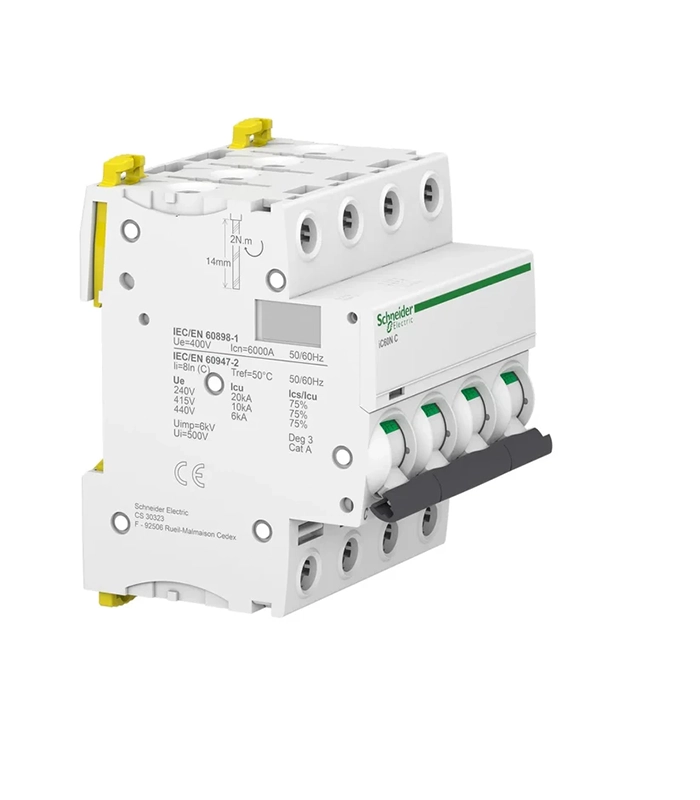

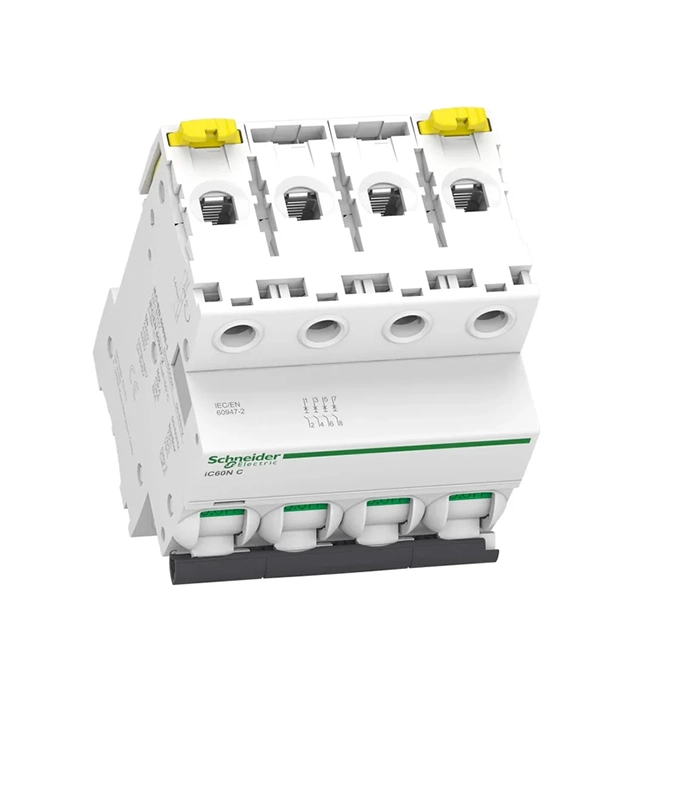

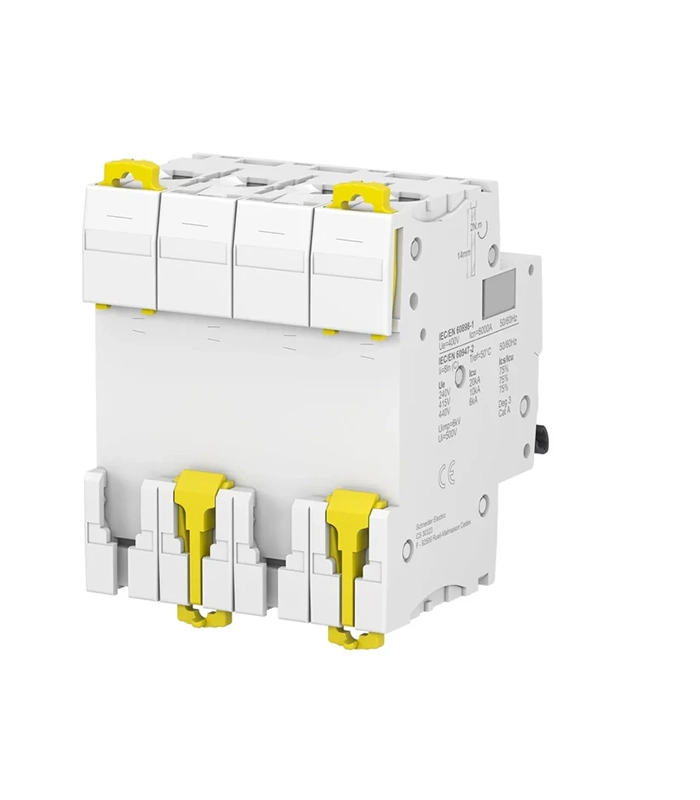

Schneider iC60N 4 Pole Miniature Circuit Breaker 6 KA-10 kA

Schneider iC60N 4P MCB Breaker price in Pakistan is Rs 11,000/-.

This iC60N is a low-voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 6A, 10A, 16A, 20A, 32A, 40A, 50A, 63A rated current, and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6,000A to 10,000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuits and overload currents. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. The pollution degree is 3. Overvoltage category is IV. The product’s color is white (RAL9003). The dimensions are (W) 72mm x (H) 85mm x (D) 78.5mm. The weight is 0.5kg. According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in the enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Product Specifications
