Schneider MasterPact 4P ACB Breaker price in Pakistan is Rs 1,500,000/-.

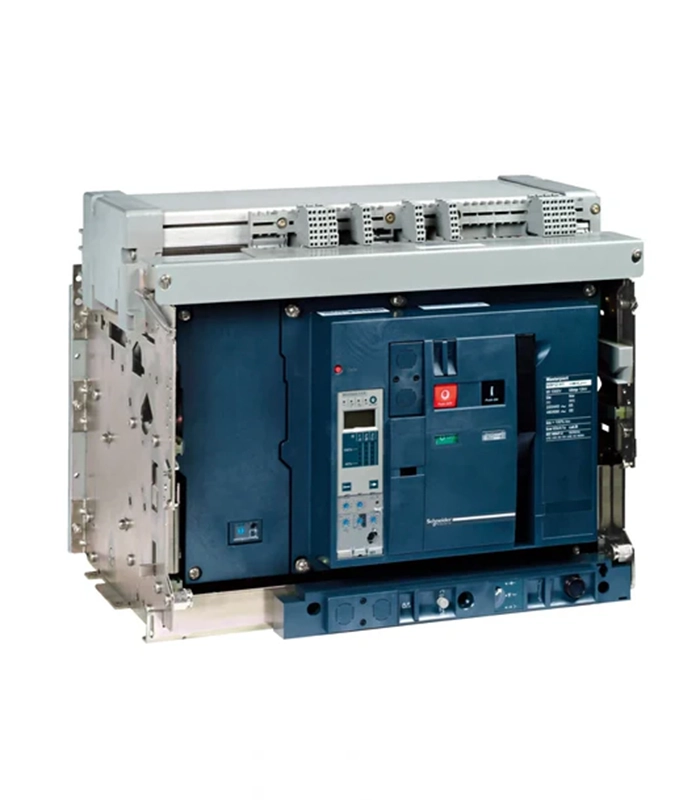

The Schneider MasterPact NW12H2 is a powerful 1250A, 4-pole air circuit breaker designed for industrial applications. With a four-pole configuration, it ensures comprehensive electrical protection across multiple phases. Known for its reliability and efficiency, this circuit breaker is a robust solution for safeguarding electrical systems in demanding environments.
|
Range
|
masterpact
|
|
product name
|
masterpact nw
|
|
circuit breaker name
|
masterpact nw12h2
|
|
product or component type
|
circuit breaker
|
|
device application
|
power distribution protection
|
|
poles description
|
4p
|
|
neutral position
|
Left
|
|
control unit
|
without control unit
|
|
rated current [in]
|
1250 a at 40 °c
|
|
performance type
|
h2 100 ka 440 v ac
|
|
rated operational voltage [ue]
|
690 v ac 50/60 hz
|
|
suitability for isolation
|
yes conforming to en/iec 60947-2
|
|
net weight
|
65 kg
|
|
selectivity category
|
category b
|
|
control type
|
push-button
|
|
mounting mode
|
fixed
|
|
rated ultimate short-circuit breaking capacity [icu]
|
100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
|
|
rated service breaking capacity [ics]
|
100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
|
|
rated short-time withstand current [icw]
|
85 ka 1 s / 50 ka 3 s
|
|
rated short-circuit making capacity [icm]
|
220 ka 220/415 v ac at 50/60 hz / 187 ka 440 v ac at 50/60 hz / 187 ka 525 v ac at 50/60 hz / 187 ka 690 v ac at 50/60 hz
|
|
integrated instantaneous protection (din in ka peak)
|
171…209 ka
|
|
sensor rating
|
630 a / 1250 a
|
|
rated insulation voltage [ui]
|
1000 v ac 50/60 hz
|
|
rated impulse withstand voltage [uimp]
|
12 kv
|
|
power dissipation in w
|
100 w
|
|
maximum breaking time
|
25 ms
|
|
maximum closing response time
|
70 ms
|
|
mounting support
|
backplate/ rails
|
|
upside connection
|
front / rear
|
|
downside connection
|
front / rear
|
|
mechanical durability
|
12500 cycles without maintenance / 25000 cycles with maintenance
|
|
ip degree of protection
|
ip30 conforming to iec 60529
|
|
pollution degree
|
4 conforming to iec 60664-1
|
|
ambient air temperature for operation
|
-25…70 °c
|
|
ambient air temperature for storage
|
-40…85 °c
|
|
operating altitude
|
0…2000 m without derating / 2000 m…5000 m with derating
|
Overview
| Ampere Rating |
1250A |
|---|---|
| No of Pole |
3 Pole |
