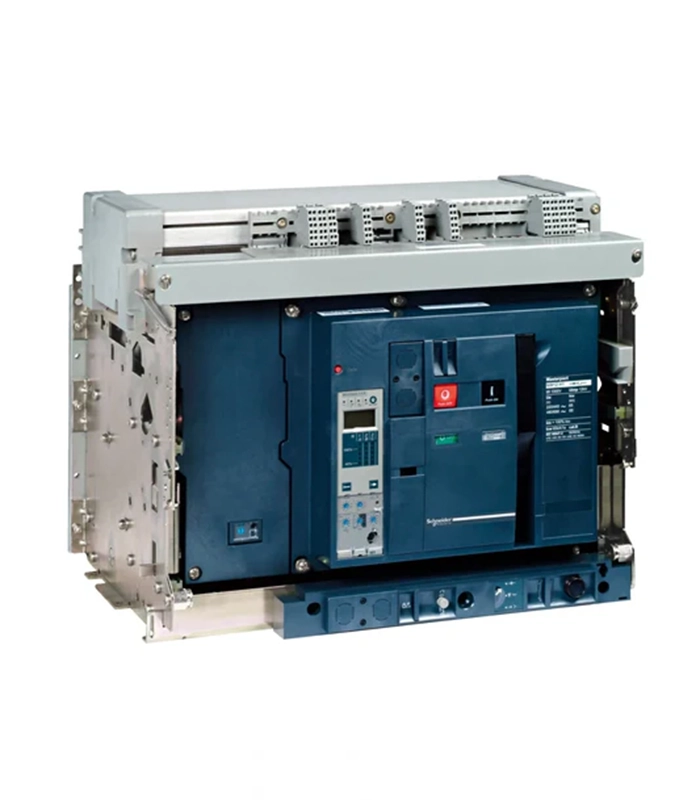

Schneider MasterPact NW32H1 4P ACB Breaker price in Pakistan is Rs 2,380,000/-.
The MasterPact is a high-performance circuit breaker frame designed for electrical distribution systems. With current ratings ranging from 3200A, it offers robust protection with a breaking capacity of 65kA at 440VAC for both 50Hz and 60Hz frequencies (Icu). This 4-pole circuit breaker features a fixed configuration and is specifically designed without a control unit. Its advanced design and reliable performance make it a suitable choice for ensuring the safety and efficiency of electrical systems.
|
Range
|
masterpact
|
|
product name
|
masterpact nw
|
|
circuit breaker name
|
masterpact nw32h1
|
|
product or component type
|
circuit breaker
|
|
device application
|
power distribution protection
|
|
net weight
|
65 kg
|
|
poles description
|
4p
|
|
neutral position
|
left
|
|
control unit
|
without control unit
|
|
rated current [in]
|
3200 a at 40 oc
|
|
performance type
|
hi 65 ka440 v ac
|
|
rated operational voltage [ue]
|
690 v ac 50/60 hz
|
|
suitability for isolation
|
yes conforming to en/iec 60947-2
|
|
selectivity category
|
category b
|
|
control type
|
push-button
|
|
[icu] rated ultimate short-circuit breaking capacity
|
65ka
|
|
[icw] rated short-time withstand current
|
65 ka 1 s / 36 ka 3 s
|
|
sensor rating
|
1600 a, 3200 a
|
|
[ui] rated insulation voltage” 1000 v ac 50/60 hz
|
|
|
[uimp] rated impulse withstand voltage
|
12 kv
|
|
power dissipation in w
|
170 w
|
|
maximum breaking time
|
25 ms
|
|
maximum closing response time
|
70 ms
|
|
mounting support
|
backplate rails upside connection
|
|
downside connection
|
front rear
|
|
ip degree of protection
|
ip30 conforming to iec 60529
|
|
pollution degree
|
4 conforming to iec 60664-1
|
|
ambient air temperature for operation
|
-25…70 °c
|
|
ambient air temperature for storage
|
-40…85 °c
|
|
operating altitude
|
0…2000 m without derating / 2000 m…5000 m with derating
|
Overview
| Ampere Rating |
3200A |
|---|---|
| No of Pole |
4 Pole |
