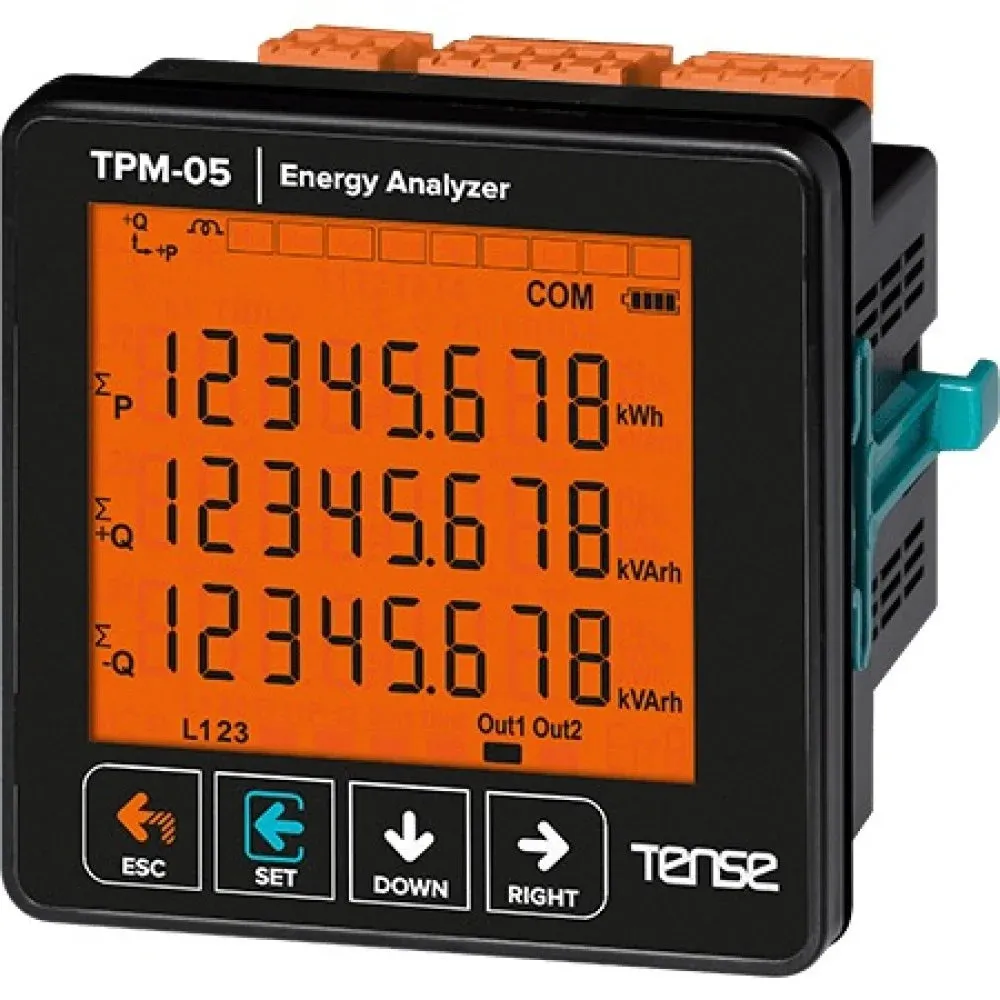

TENSE TPM-05 GLASS LCD SCREEN (96*96mm)

Tense Energy Analyzers Price in Pakistan Rs 83,700/-.
The Tense TPM-05 is a versatile and highly accurate digital energy analyzer designed for comprehensive monitoring of electrical parameters in three-phase systems. With a large backlit LCD display and built-in RS-485 Modbus RTU communication, it enables real-time data tracking and seamless integration into energy management systems. TPM-05 is ideal for industrial, commercial, and automation applications where precise power measurement and energy efficiency are critical.

Key Features

• Easy Installation and Operation with 71.5×61.5 Glass LCD Display
• With 3-Phase Voltage and 3-Phase Current Transformers
• Easy-To-Use Menu
• It Shows Voltage and Current Harmonics Up To 55th Harmonics
• Remote Communication with RS485 (RS485 Modbus RTU)
• It Shows Per-Phase Active Powers (P)
• It Shows Per-Phase Reactive Powers (Q, Inductive and Capacitive)
• It Shows Per-Phase Apparent Powers (S)
• It Shows Cosf and Power Factor Values of Each Phase
• It Shows Voltage (V) and Current (I) Values of Each Phase
• It Shows Total Import and Export Active Energy (SkWh) Values
• It Shows Total Inductive and Capacitive Reactive Energy (SkVArh) Values
• It Shows the Minimum and Maximum Values
• It Shows Demand Values
• You Can Reset the Energy Values
• Real Date and Time
• Date and Time can be Adjusted
• Password Protected Menu
• 2 Relay Outputs, 1 Digital Input (Adjustable)
• Event Records (High/Low Voltage/Current, Energy Interruption, Voltage Imbalance etc.)


  Product Specifications

  Type	energy analyzers
  model	tpm-05
  accuracy	class 0.5s (energy), class 0.2 (voltage/current)
  communication	rs-485 modbus rtu
  current input	5a via external cts (1a optional)
  display	large backlit lcd, multi-parameter view
  frequency	45–65 hz
  housing material	flame-retardant thermoplastic
  measured parameters	voltage (v), current (a), frequency (hz), active power (kw), reactive power (kvar), apparent power (kva), power factor (pf), energy (kwh), demand, harmonics (up to 31st order)
  mounting type	panel mount
  operating temperature	-10°c to +60°c
  power supply	85–265v ac/dc
  protection rating	ip52 (front), ip20 (rear)
  pulse output	1 or 2 programmable outputs for energy pulse
  system type	three-phase (3p3w/3p4w)
  voltage input	3×230/400v ac
